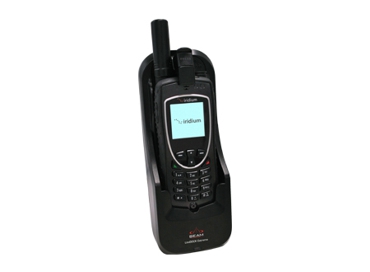

BEAM LiteDOCK Extreme er ein
dockingstasjon, tilbruk i forskjellige miljø, som fks maritmt, i
kjøretøy eller til fastinstallasjon. Telefonen får lading, og du kan
snakke via høgtalefunksjonen på telefonen eller via øyrepluggen som
følger med din Iridium extreme.
Du lader via ladesett eller 12-24V ladekabel som følgde med din extreme telefon.
Kan ikkje brukes i kombinasjon med ekstra stort batteri.(Pga plass)
Brosjyre
* When 9575 Battery is fully charged
# Derived from the charging temperature range of the Iridium 9575 handset battery.
Du lader via ladesett eller 12-24V ladekabel som følgde med din extreme telefon.
Kan ikkje brukes i kombinasjon med ekstra stort batteri.(Pga plass)
Brosjyre
POWER SPECIFICATIONS
Rated Input
AC Power Pack
Average Power Consumption
AC Power Pack
Average Power Consumption
6V DC, 850mA max
Not included (Adaptor included with your Iridium Handset)
5 Watts
Not included (Adaptor included with your Iridium Handset)
5 Watts
INTERFACES
Data Port (USB)
Power Cable Iridium Antenna
Connector
GPS Antenna Connector
Power Cable Iridium Antenna
Connector
GPS Antenna Connector
USB Mini-B 5-pin female (USB Slave).
Inline circular socket to support Iridium 3mm power jack
TNC-Female
Active 3.3V DC, SMA Female
Inline circular socket to support Iridium 3mm power jack
TNC-Female
Active 3.3V DC, SMA Female
ENVIRONMENTAL
Operate Temp. Range*
Charging Temp. Range#
Operating Humidity Range
Storage Temperature
Weight (Dock Only)
EMC Compliance
RoHS
WEEE
Flame Retardant
Safety - SELV
Charging Temp. Range#
Operating Humidity Range
Storage Temperature
Weight (Dock Only)
EMC Compliance
RoHS
WEEE
Flame Retardant
Safety - SELV
LiteDOCK -30°C to +70°C, Extreme (9575) Handset
-10°C to +55°C
0°C to 45°C
< 85% RH non-condensing
-30C to +80C
375g
CE
Full compliant RoHS Directive EU 2002/95/EC (All 6 substances)
For EU countries, this product must be collected separately from household waste, as defined in each region. This product must not be discarded together with household waste.
UL94.0
IEC/EN/AS/NZ 60950-1
0°C to 45°C
< 85% RH non-condensing
-30C to +80C
375g
CE
Full compliant RoHS Directive EU 2002/95/EC (All 6 substances)
For EU countries, this product must be collected separately from household waste, as defined in each region. This product must not be discarded together with household waste.
UL94.0
IEC/EN/AS/NZ 60950-1
* When 9575 Battery is fully charged
# Derived from the charging temperature range of the Iridium 9575 handset battery.
KIT CONTENTS
LiteDOCK Cradle
Universal Mounting Bracket (RAM)
Earpiece Extension Cable
Quick Start Guide
Universal Mounting Bracket (RAM)
Earpiece Extension Cable
Quick Start Guide
